NK-002 submersible pump float switch

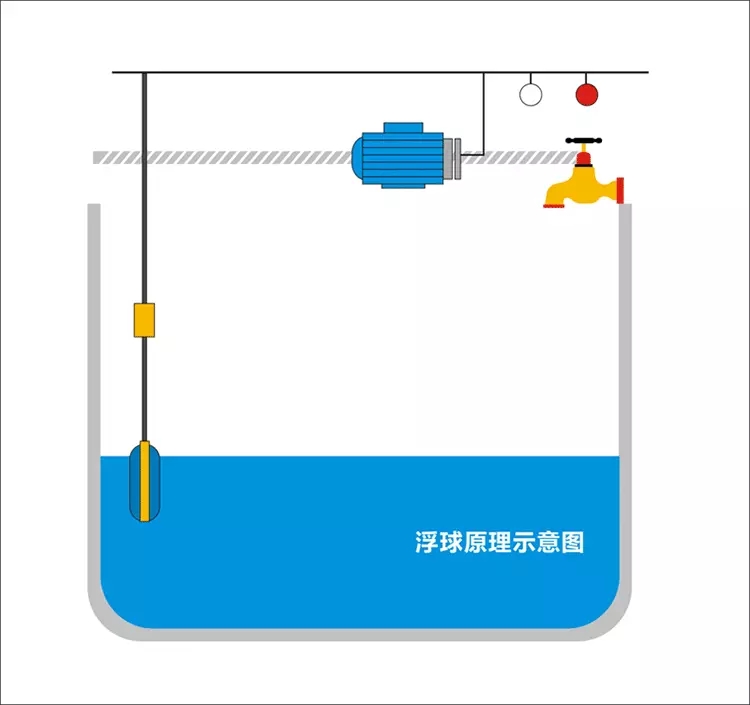

Cable Float Switch mainly used together with the water pump to control the water level or the other liquid level.


  Simple construction,reliable performance

    The product can output stable and reliable switch control signal of"making","breaking"without any fault action,so its reliability is

    very high and antiinterference is strong.


  Sturdy and durable,need not maintain

    The product can be used for a long time after it being installed,Almost no maintenance and repairing problem would occur

    during its operation period.


  Easy installation method,convenient adjustment method

    The liquid level control scope can be adjusted at willwith the locating piece moving up and down.Only one screw is needed to

    secure the signal cable to finish installation.


  Wide application scope,strong generality

    The product applies to branch water,sewage,acid-base solution of less than medium concentration.oils and situations

    requiring no pollution(for example food and drinks industry), diesel oil gasification kitchen range,and automatic fuel feeding


  Simple circuit.economial and practical

    Operation voltage is 250V(380V)/120V,and current can be up to 16A(8A),10A(8)A,10(4)A,The applied circuit of the product

    is simple,so application cost is very low.


Model: NK-002
Float Material: PP
Cable Material:PVC/ RUBBER Cable
Wire: Three wire
Wire Standard: 3*0.75 smm.
Rated voltage:250V (380V)
Rated current:16A (8A)
Working temperature:0℃<water temperature≤80℃
Mechanical endurance:≥10,000times
Electrical endurance:≥50,000times
Protection Grade:IP68

·         Material,size and other requirements are customized.
